summary of the different lights a solo case can display while charging and what they mean
|
Solo Case LED |
What it means |
Action Needed From User |
|

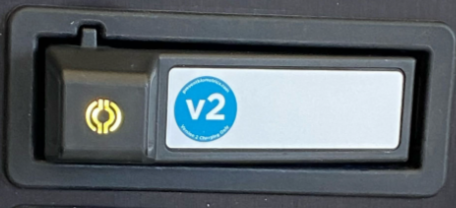

Yellow |
iMG is being Charged properly, in the process of reaching a full charge |
No action needed, leave charging in the team case. Do not remove the Solo case until ready for use. |
|

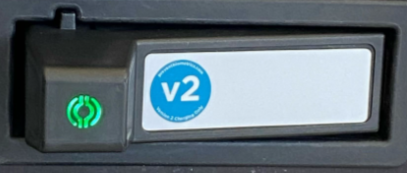

Green |
iMG has been fully charged and has reached 100% |
No action needed, leave charging in the team case.Do not remove the Solo case until ready for use. |
|

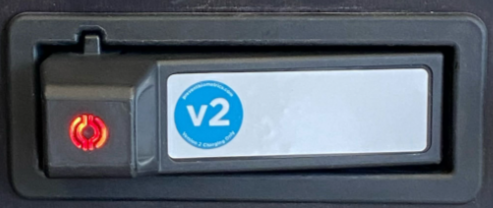

Red |
iMG has not successfully established a charging connection |
No immediate action needed, however wait to see if the red light becomes a red flashing light. May just take an extra bit of time for charging connection to be established and solo case to turn yellow |
|
Blinking Red |
Solo case has stopped attempting to charge iMG |
Unplug the Solo case, check the alignment of the iMG and re-insert it into the team case to power reset it. For most cases, power resetting the solo case should fix the issue and allow the iMG to charge up |
|

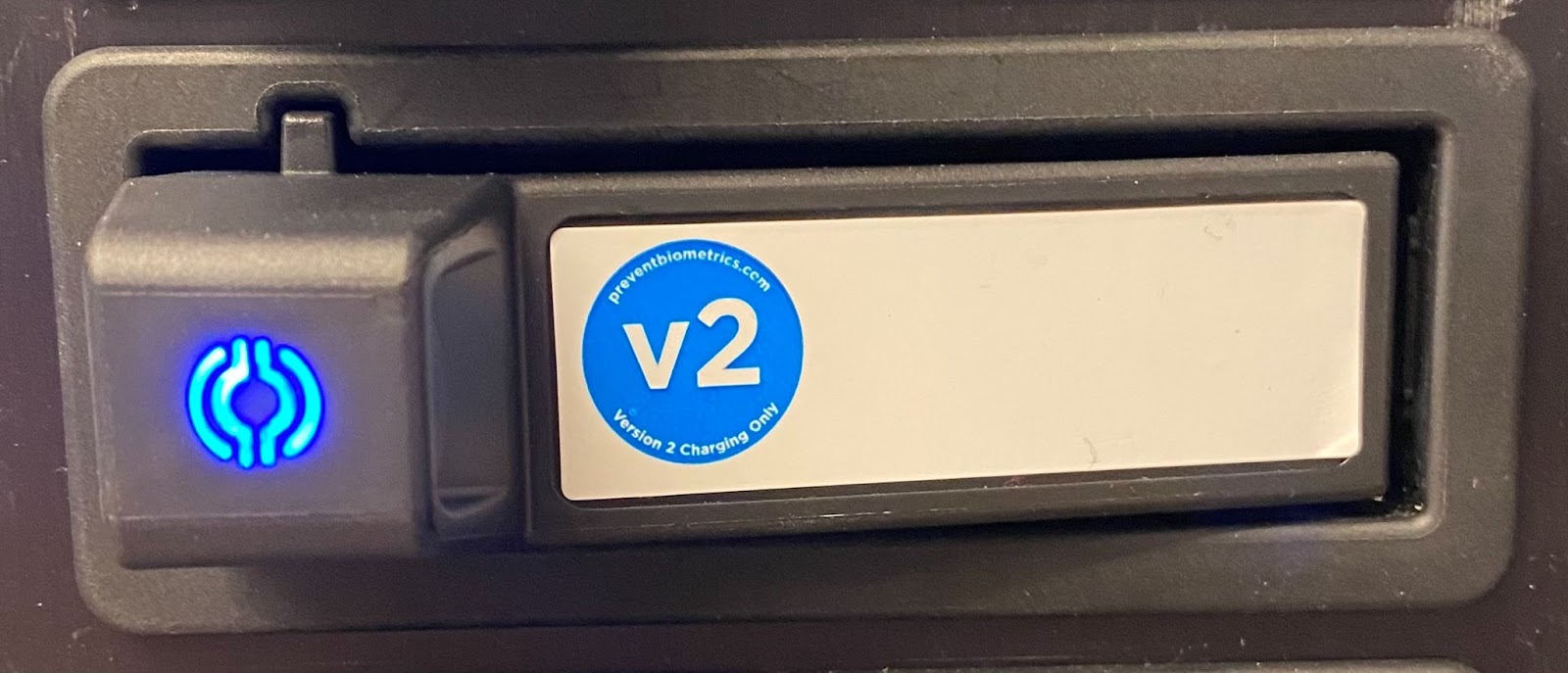

Blue |
iMG is shut down from IOS app |
Solo cases will need to be power cycled with iMG inside before next use. If traveling, plugging the teamcase in at the site with all iMGs inside will work. Otherwise, unplug and re-insert the solo case and the iMG will wake up. |
